Large Bore Fittings: Krachtige Verbindingen voor Grote Flows

Wanneer uw applicatie vraagt om een hogere doorstroomsnelheid (flow rate), volstaan standaard 1/16″ of 1/8″ verbindingen niet meer. De Large Bore Fittings collectie van IDEX Health & Science biedt een robuust assortiment nuts en ferrules die specifiek zijn ontworpen voor grotere poortontwerpen en tubing met een aanzienlijke buitendiameter (OD)

Geschikt voor Brede Poortontwerpen

Deze collectie focust op de grotere industriële en laboratoriumstandaarden voor flat-bottom poorten:

5/16-24 UNF poorten
1/2-20 UNF poorten

Part No.	Description	Port	Pressure Rating	Head Style	Material
P-136	Flangeless Nut for 1/16” OD tubing	5/16-24 Flat-Bottom	**	Standard Knurl	PEEK Natural
P-141	Super Flangeless Nut for 1/16” OD tubing	5/16-24 Flat-Bottom	**	Standard Knurl	PEEK Natural
P-130	Flangeless Nut for 1/8” OD tubing	5/16-24 Flat-Bottom	**	Standard Knurl	PEEK Natural
P-131	Super Flangeless Nut for 1/8” OD tubing	5/16-24 Flat-Bottom	**	Standard Knurl	PEEK Natural
P-132	Flangeless Nut for 3/16” OD tubing	5/16-24 Flat-Bottom	**	Standard Knurl	PEEK Natural
P-137	Super Flangeless Nut for 3/16” OD tubing	5/16-24 Flat-Bottom	**	Standard Knurl	PEEK Black
U-655	Flangeless Nut for 1/4” OD tubing	1/2-20 Flat-Bottom	**	Large Knurl	PEEK Black
U-662	Flangeless Nut for 5/16” OD tubing	1/2-20 Flat-Bottom	**	Large Knurl	PEEK Black
P-344	Flangeless Ferrule for 4.0 mm OD Tubing	5/16-24 Flat-Bottom	250 psi (17 bar)	–	ETFE Natural
P-133	Flangeless Ferrule for 3/16” OD tubing	5/16-24 Flat-Bottom	500 psi (34 bar)	–	ETFE Blue
P-133N	Flangeless Ferrule for 3/16” OD tubing	5/16-24 Flat-Bottom	500 psi (34 bar)	–	ETFE Natural
P-140	Super Flangeless Ferrule for 3/16” OD tubing	5/16-24 Flat-Bottom	500 psi (34 bar)	–	ETFE Green
U-650	Flangeless Ferrule for 1/4” OD tubing	1/2-20 Flat-Bottom	250 psi (17 bar)	–	ETFE Natural
U-660	Flangeless Ferrule for 5/16” OD tubing	1/2-20 Flat-Bottom	250 psi (17 bar)	–	ETFE Natural
**Pressure rating of nut depends on the ferrule used

Part No.

Description

Port

Pressure Rating

Head Style

Material

P-136

Flangeless Nut for 1/16” OD tubing

5/16-24 Flat-Bottom

Standard Knurl

PEEK Natural

P-141

Super Flangeless Nut for 1/16” OD tubing

5/16-24 Flat-Bottom

Standard Knurl

PEEK Natural

P-130

Flangeless Nut for 1/8” OD tubing

5/16-24 Flat-Bottom

Standard Knurl

PEEK Natural

P-131

Super Flangeless Nut for 1/8” OD tubing

5/16-24 Flat-Bottom

Standard Knurl

PEEK Natural

P-132

Flangeless Nut for 3/16” OD tubing

5/16-24 Flat-Bottom

Standard Knurl

PEEK Natural

P-137

Super Flangeless Nut for 3/16” OD tubing

5/16-24 Flat-Bottom

Standard Knurl

PEEK Black

U-655

Flangeless Nut for 1/4” OD tubing

1/2-20 Flat-Bottom

Large Knurl

PEEK Black

U-662

Flangeless Nut for 5/16” OD tubing

1/2-20 Flat-Bottom

Large Knurl

PEEK Black

P-344

Flangeless Ferrule for 4.0 mm OD Tubing

5/16-24 Flat-Bottom

250 psi (17 bar)

–

ETFE Natural

P-133

Flangeless Ferrule for 3/16” OD tubing

5/16-24 Flat-Bottom

500 psi (34 bar)

–

ETFE Blue

P-133N

Flangeless Ferrule for 3/16” OD tubing

5/16-24 Flat-Bottom

500 psi (34 bar)

–

ETFE Natural

P-140

Super Flangeless Ferrule for 3/16” OD tubing

5/16-24 Flat-Bottom

500 psi (34 bar)

–

ETFE Green

U-650

Flangeless Ferrule for 1/4” OD tubing

1/2-20 Flat-Bottom

250 psi (17 bar)

–

ETFE Natural

U-660

Flangeless Ferrule for 5/16” OD tubing

1/2-20 Flat-Bottom

250 psi (17 bar)

–

ETFE Natural

**Pressure rating of nut depends on the ferrule used

Large Bore Fittings: Krachtige Verbindingen voor Grote Flows

Geschikt voor Brede Poortontwerpen

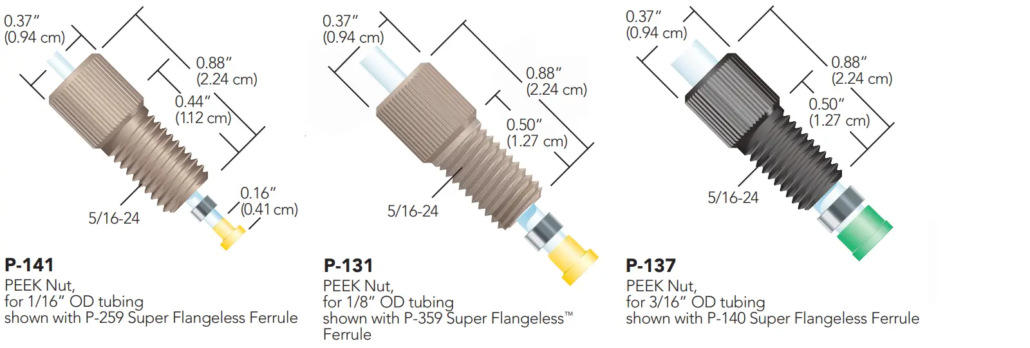

Super Flangeless™ fittings for 5/16-24 ports

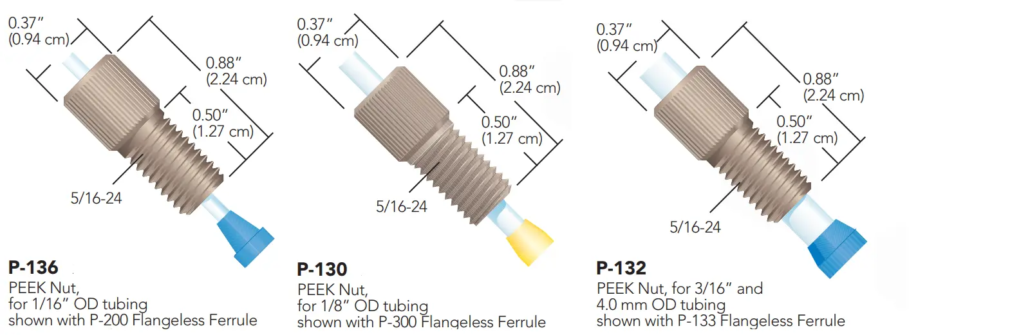

Flangeless™ fittings for 5/16-24 ports

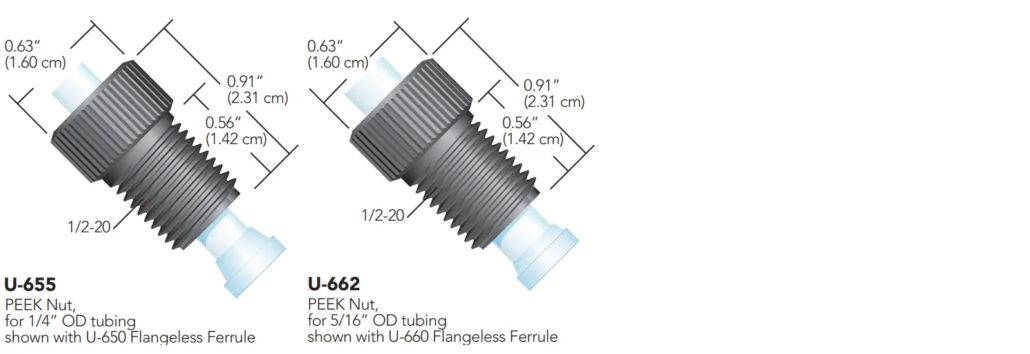

Flangeless™ fittings for 1/2-20 ports
