De volgende single stage pressure regulators zijn aanwezig in het programma:
CPR-1
A compact pressure regulator to provide pressure control in applications where a small size and low inlet volume are required. Internal dead volume less than 4cc.
CPR-5
A compact pressure regulator to provide pressure control in applications where a small size and low inlet volume are required. Outlet pressure up to 250 psig.
LG-1
Available in Stainless Steel or Aluminum, the LG-1 Series affords the utmost in miniaturization. Internal volume less than 2.7cc.
PR-1
Single stage 316L SS pressure reducing regulator with inlet pressure ratings up to 6000 psig. Outlet ranges from 0–10 up to 0–750 psig.
PR-2
Single stage Brass Alloy 360 pressure reducing regulator with inlet pressure ratings up to 3600 psig. Outlet ranges from 0–10 up to 0–500 psig.
PR-5
Single stage 316L SS pressure reducing regulator to provide control in applications that have inlet pressure up to 300 psig.

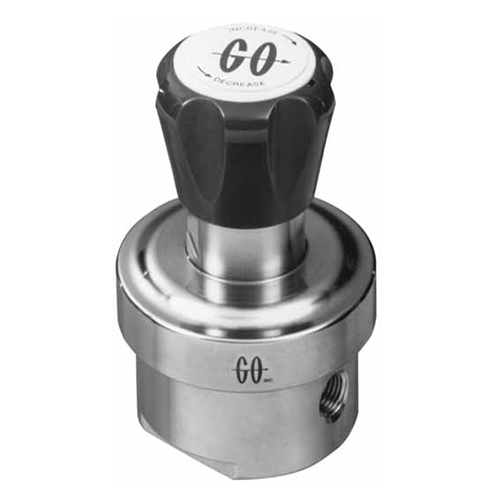

PR-7
A high flow single stage regulator available in Brass Alloy 360 or 316L SS with inlet pressures up to 3600 psig and outlet pressures of 0–25 to 0–500 psig. Cv: 1.1
PR-7LF
A highly sensitive single stage pressure regulator available in Brass Alloy 360 or 316L SS with inlet pressures up to 3600 psig and outlet pressures of 0–6
to 0–150 psig. Cv: 0.025, 0.06, 0.20 or 0.50
PR-7ULF
An ultra sensitive low flow single stage pressure regulator available in Brass Alloy 360 or 316L SS with inlet pressures up to 250 psig and outlet
pressure ranges of 0–6 through 0–100 psig.
PR-9
A high temperature single stage regulator with standard operating temperatures up to 650° F at 3000 psig inlet and optional capability up to 1000°F. Outlet ranges up to 250 psig.
PR-11
Single stage anodized Aluminum pressure reducing regulator with inlet pressure ratings up to 3600 psig, outlet ranges from 0–10 up to 0–250 psig.
SPR
A highly sensitive single stage sub atmospheric pressure regulator available in Brass Alloy 360 or 316L SS with inlet pressures up to 160 psia and outletpressures of 1–30 psia. Cv: 0.2
